Laser Power
1.5-3kW
Cutting Range of Tube
8-120mm
Max. Linkage Speed
150m/min
Max.Length of Tube
6500mm
PRODUCT OVERVIEW
High-speed Cutting Solution Designed Specifically for Tiny Tubes
High quality processing can be carried out on tiny tubes with a diameter
of 8-120mm. With linkage speed of 150m/min and acceleration of 1.5G,
high dynamic performance significantly reduces processing time for you.

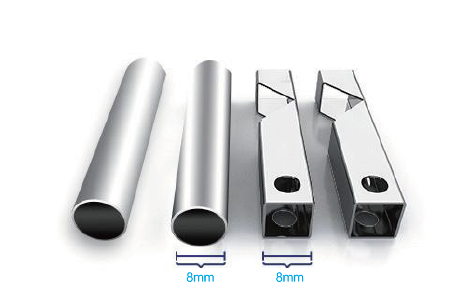

TYPICAL PROCESSING
Multiple Functions for Tiny Tube Processing
R1 equipped with dual pneumatic chucks and independent servo followup
support, providing sufficient support force for tube rotation cutting
and improving cutting accuracy. Engineered for versatility, capable of
processing tiny tubes with a weight of 80kg.
IMPROVE CUTTING ACCURACY
Servo Follow-up Support for High Precision
The machine bed is equipped with highly sensitive and independent
servo follow-up support to provide enough support
force in rotation cutting and achieve high cutting accuracy.

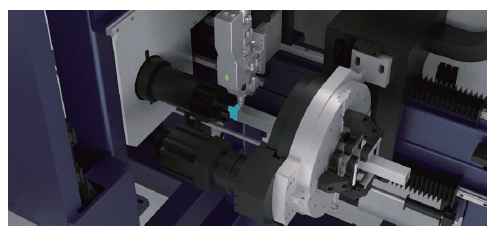

SAVE YOUR COST
Standard Equipped with Chuck Jumping for Short Tailings
R1 Series can shorten the large amplitude of tailing length through
chuck jumping.Jumping type of high-precision cutting can ensure
the cutting accuracy of long tubes by chuck displacement.Optional
servo chuck jumping can finish chuck jumping action accurately a nd
efficiently.

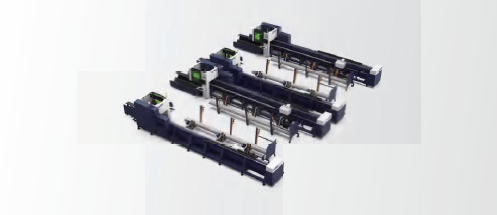

SAVE YOUR SPACE
Left and Right Mirror Layout
Two loading directions can be selected, one person can control
multiple devices, and multiple combinations save production
space than traditional one-way layout.

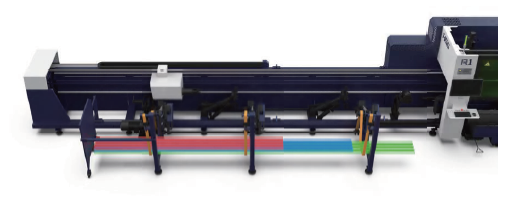

SAVE YOUR TIME
Efficient Multi-mode Loading (Optional)
R1 Series matches with automatic material racks to achieve loading
material in 20s.Automatic material racks can support the tubes with
15mm-120mm diameter and 4.8m-6.5m length. Automatic material rack
is compatible with semi-automatic loading mode for loading one by one.

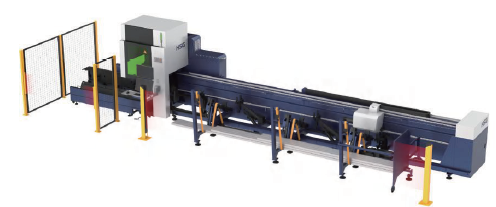

CARE YOUR SAFETY
Additional Safety Protection（Optional）
Equipped with a top cover for enclosed processing to reduce
smoke and maintain a clean working environment.The safety
light curtain will prevent any possible collision with human
body and protect both workers and the machine well.
TECHNICAL PARAMETERS
| Model | R1 |
| Laser Power | 1.5-3KW |
| Cutting Capacity of Round Tube / Square Tube | φ8mm-120mm / □8×8-□120×120mm |
| Weight of Single Tube | 80kg |
| Max. Linkage Speed | 150m/min |
| Max. Linkage Acceleration | 1.5G |
| The Range of Tube Material | 1000-6500mm |
