ALG Pro – EMT

Cycle time of loading and unloading process

<80s

Configuration & Layout

Extendable

Sheet Thickness Range

0.8mm - 16mm 1/32''-5/8''

PRODUCT OVERVIEW

Eliminate Downtime in Laser Cutting Production

ALG Pro is a compact gantry-structured automatic loading/unloading system for laser cutting, boosting your machine utilization and optimizing your space.

SAVE YOUR TIME

Boost Your Productivity with Time Saving

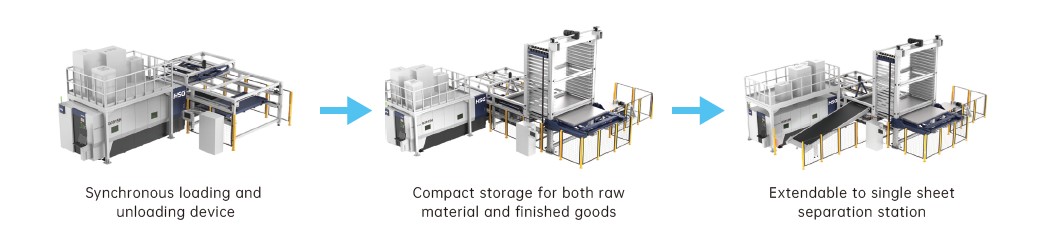

Short cycle times thanks to synchronous loader, a complete loading
unloading cycle only takes 80 seconds.

Improve your logistic

Flexible configuration and layout of loading and unloading station enable a better logistic for your plant.

INVEST LESS

Save Your Cost in Each Step

Our system could grow together with your business. The modular design enables a cost-effective extension of the automation system.

TECHNICAL PARAMETERS

Model	ALG Pro 3015	ALG Pro 4020
Structure	Gantry	Gantry
Max.Loading Sheet Size	3048×1524 mm (10′ x 5′)	4064x2032mm (13.3’x 6.6′)
Min. Sheet Size: Loading/Unloading	1000×1000 mm (3.28′ x 3.28′) /150mm×150mm (0.5′ x 0.5′)	1000×1000 mm (3.28′ x 3.28′) /150mm×150mm (0.5′ x 0.5′)
Sheet Thickness Range	0.8mm – 16mm (1/32”-5/8”)	0.8mm – 16mm (1/32”-5/8”)
Max. Sheet Weight for Loading/Unloading	600kg (1323 lbs)	1200kg (2645 lbs)
Max. Loading Weight of the Finished Part Pallets	3000kg (6613 lbs)	5000kg (11023 lbs)
Incl.	Light curtain and fence / Thin sheet separation
