Laser Power
3-20kW
Cutting Range of Tube
40-350mm
Max. Linkage Speed
80m/min
Max Single Tube Weight
1,000kg
PRODUCT OVERVIEW
Specially Designed For Economical Heavy-duty Tube Processing
Experience the R3R—an affordable solution in quality, productivity, and
performance. Engineered to handle medium heavy-duty tube cutting
applications, it offers up to 20kW of laser power, accommodates tube
with a length of 12m, a weight of 1,000 kg, and a diameter of 350mm.
TYPICAL PROCESSING

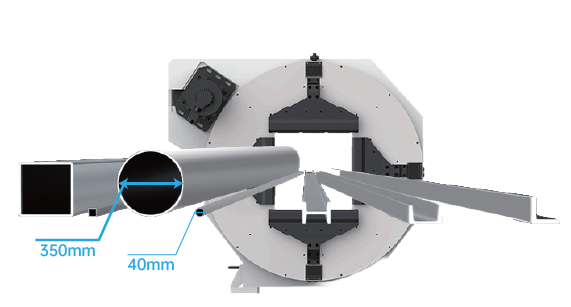

Full-stroke Chucks
With the HSG full-stroke chucks, tubes can be manufactured across
the entire clamping range from 40mm to 350mm without the need
for retooling.
SAVE YOUR COST

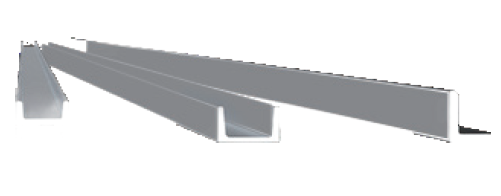

Quickly Process Open Profiles
The machine is equipped with national-standard profile
grippers as standard, which can easily cut angle steel,
channel steel and H steel.
MEET YOUR NEEDS
Diverse Product Options
It supports a variety of models to meet diverse processing needs.
Optional processing tube length: 6.5m/9m/12m
Optional single tube loading capacity: 600kg/1000kg
SAVE YOUR TIME

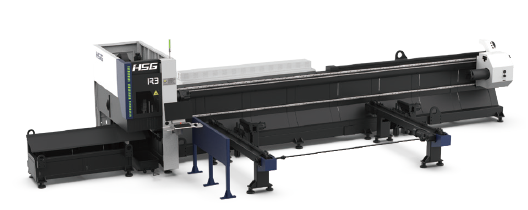

Automatic Loading And Unloading (Optional)
Automatic loading and unloading of pipes, efficient and
time-saving, shorten production preparation time. Greatly
improves operational safety, saves labor and reduces
production costs.
SAVE YOUR COST
Heavy-duty Tube Following Support System
The heavy-duty tube following support system provides all-round
effective support in pipe processing and improves the accuracy of
heavy tube processing.
CARE YOUR SAFETY

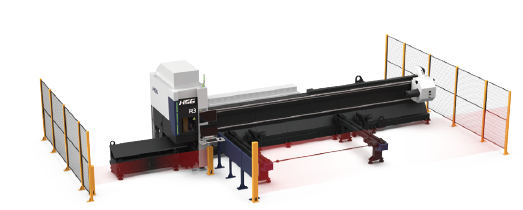

Additional Safety Protection（Optional）
Equipped with a top cover for enclosed processing to reduce
smoke andmaintain a clean working environment.The safety
light curtain will prevent any possible collision with human
body and protect both workers and the machine well.
TECHNICAL PARAMETERS
| Model | R3R | R3R-120 |
| Laser Power | 3-20KW | 3-20KW |
| Cutting Capacity of Round Tube / Square Tube | φ40-350mm 口40×40-350x350mm |
φ40-350mm 口40×40-350x350mm |
| Weight of Single Tube | 600kg | 1,000kg |
| Max. Linkage Speed | 80m/min | 80m/min |
| Max. Linkage Acceleration | 0.8G | 0.8G |
| The Range of Tube Material | 1000-6500mm | 1000-12000mm |
