Laser Power
3-6kW
Cutting Range of Tube
20-240mm
Max. Linkage Speed
100m/min
Cutting Head
3D（Optional）

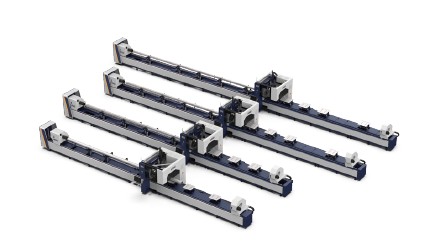

PRODUCT OVERVIEW
Designed for Mid-Size Tubes Cutting
The T-Series supports tubes with a radius of 20-240mm (T2) or up to 350mm(T3), offering a significantly expanded processing range. Its advanced three-chuck design ensures greater load-bearing capacity, enables zero-tail cutting, and facilitates seamless automatic cutting
of finished products. This state-of-the-art solution meets diverse processing needs while maximizing cost efficiency for customers.
TYPICAL PROCESSING
Durable Dual Front, Single Rear Chuck Structure
The durable dual-front, single-rear chuck design provides comprehensive clamping and support for tubes, greatly enhancing load-bearing capacity. This design ensures a smoother cutting process while delivering outstanding cutting precision.
SAVE YOUR COST
Full-Length Tube Loading and Unloading

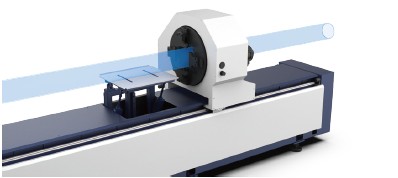

The hollow chuck design allows tubes to pass through effortlessly, enabling the loading and unloading of entire tubes. This design increases the maximum tube length capacity, with automatic blanking lengths reaching up to 6m.
SAVE YOUR COST
Maximize Material Saving
The chuck’s forward and backward movement automatically adjusts the tube’s position, achieving zero tailings during cutting. This maximizes tube utilization and reduces material costs.
IMPROVE THE PRECISION

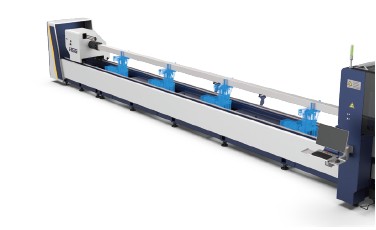

High-precision Cutting With Independent Servo Follow-up Support
T series equipped with 8 highly sensitive, independent servo follow-up support components. These components provide robust support during tube cutting, ensuring precision and stability.
SAVE YOUR TIME

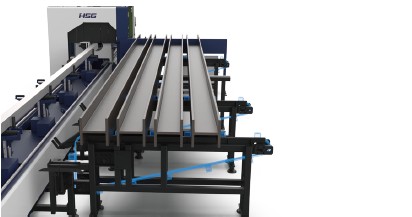

Multi-functional Loading Rack for Fast Loading (Optional)
Optional multifunctional loading frame can fulfill the automatic loading of 6-9 meters round tube, square tubes, steel sections and other tubes, achieving rapid loading of tubes, saving labor costs and improve productivity.
CARE YOUR SAFETY
Additional Safety Protection (Optional）
> Equipped with a top cover for enclosed processing to reduce smoke and maintain a clean working environment.
> The safety light curtain will prevent any possible collision with
human body and protect both workers and the machine well.
TECHNICAL PARAMETERS
| Model | T2 | T3 |
| Laser Power | 3-6kW | 3-6kW |
| Cutting Capacity of Round Tube / Square Tube | φ20mm-240mm / □20×20-□240×240mm | φ40mm-350mm / □40×40-□350×350mm |
| Weight of Single Tube | 300kg | 600kg |
| Max. Linkage Speed | 100m/min | 80m/min |
| Max. Linkage Acceleration | 1G | 0.8G |
| The Range of Tube Material | 1000-7000mm | 1000-9000mm |
