Laser Power
3-6kW
Cutting Range of Tube
12-240mm
Max. Linkage Speed
120m/min
Max.Length of Tube
9000mm
PRODUCT OVERVIEW
Advanced Intelligent Cutting Solutions
High quality processing can be carried out on various types of tubes
with a diameter of 12-240mm. With linkage speed of 120m/min and
acceleration of 1.2G, high dynamic performance significantly reduces
processing time for you.

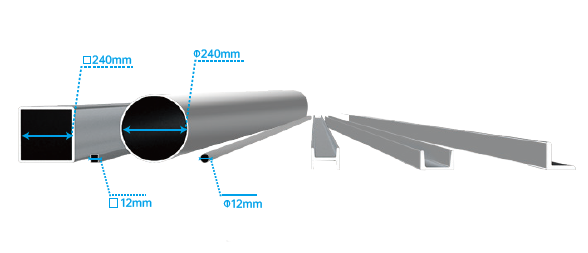

TYPICAL PROCESSING
Superior Tube Processing Capabilities for All Your Processing Tasks
Wide range of tube cutting sizes： 12-240mm.
Various type of tube shapes:round tube、square tube、L-profile 、
H-profile. Long length of tube cutting: max. raw material length of
up to 9m.
SAVE YOUR COST
Cost-effectively Cutting of Various Tubes
High dynamic performance，faster tube processing efficiency.
Speed:120m/min
Chuck rotation speed:120r/min
Weight of Single Tube : 300kg
SAVE YOUR COST
Advanced Intelligent Cutting Solutions
Automatic measurement of the tube center,improve the accuracy
of pipe cutting.
Corner anti-burn function，optimum cutting result
Short tail cutting, save materials and reduce costs
WORTH YOUR TRUST
Robust and Reliable
Standard-equipped tube support mechanism,ensure the
precision of tube cutting. Standard-equipped dust blowing
system, prioritizing worker’s health.
SAVE YOUR COST
Versatile Automation (Optional)
Automatic loading raw material quickly and easily.
Automatic unloading of long finished part.
CARE YOUR SAFETY
Additional Safety Protection（Optional)
> Equipped with a top cover for enclosed processing to reduce smoke
and maintain a clean working environment.
> The safety light curtain will prevent any possible collision with
human body and protect both workers and the machine well.
TECHNICAL PARAMETERS
| Model | R2 |
| Laser Power | 3-6KW |
| Cutting Capacity of Round Tube / Square Tube | φ12mm-240mm / □12×12-□240×240mm |
| Weight of Single Tube | 300kg |
| Max. Linkage Speed | 120m/min |
| Max. Linkage Acceleration | 1.2G |
| The Range of Tube Material | 1000-6500mm / 1000-9000mm |
