Laser Power
3-30kW
Max. Linkage Acceleration
1.5 G
Max. Linkage Speed
140m/min
PRODUCT OVERVIEW
Reliable and Cost-effective Solution for High-power Processing
As our entry-level high-power laser cutting model, the GX Series provides a professional yet cost-effective solution for your 2D laser cutting needs, significantly enhancing overall performance and delivering a new standard of operational excellence.
TYPICAL PROCESSING
Up to 30kW of Powerful Performance

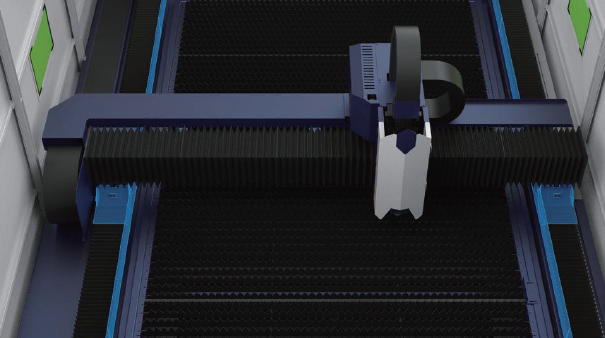

The new-generation GX Series features a comprehensively optimized transmission system that delivers enhanced dynamic performance, precisely matching optical inertia ratios to support high-power cutting from 3kW to 30kW. This upgrade significantly boosts overall performance, providing a next-level cutting experience.
RELIABILITY & DURABILITY

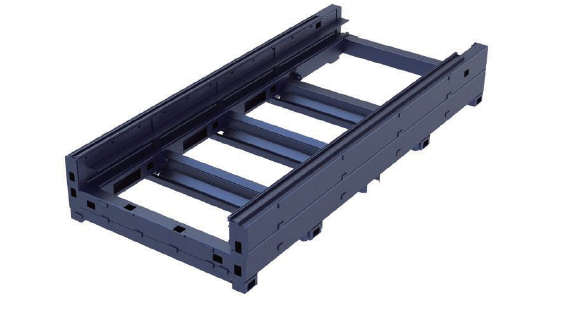

Robust Matrix Machine Bed with enhanced Rigidity
The GX Series features a robust matrix machine bed with enhanced rigidity. A redesigned matrix structure and cross-sectional welding fortify the entire machine bed, significantly boosting structural stability and minimizing impacts that could compromise performance.
EASY TO USE
Made for High-power, Ease of Intelligent
GX equipped with the Alpha T 2.0 bus control system, delivers a suite of high-performance cutting functions. With advanced features like Intelligent Path Optimization, Smart Nesting Algorithms, Seamless Micro Connections, Non-Sensory Piercing, and Cutting Head Movement Avoidance, this system makes high-power laser cutting both effortless and incredibly precise.
EASY TO USE

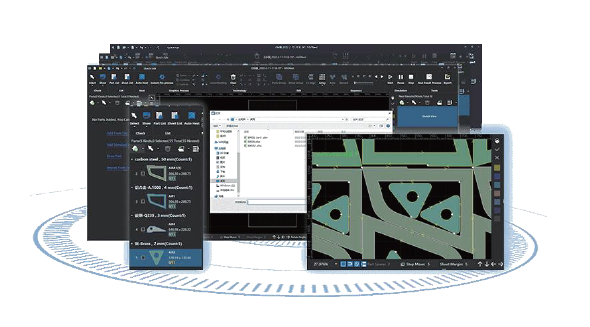

Professional Nesting Software with Standard Configuration
- High nesting utilization ratio as famous nesting software.
- Simple operation with drawing function and support manual and automatic nesting. Support different materials and thicknesses categorized typesetting.
- Excel batch import.
SAVE YOUR TIME
Cost-Effective Automation Solutions for Enhanced Productivity
The GX Series features flexible automated loading and unloading systems. This integration minimizes labor, reduces cycle times, and boosts efficiency.
TECHNICAL PARAMETERS
| Model | G3015X | G4020X | G6025X | G12025X |
| Laser Power | 3-20kW | 3-20kW | 3-20kW | 12-30kW |
| Cutting Area(Length*Width) | 3048mmx1524mm | 4064mm×2032mm | 6096mm×2540mm | 12500×2540mm |
| Maximum Acceleration | 1.5G | 1.5G | 1.5G | 1.5G |
| X/Y Axis Postioning Accuracy | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m |
| X/Y Axis Re-postioning Accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
