Laser Power
3-12kW
Max. Linkage Acceleration
1.5G
Processing Efficiency increased by
≈30%
PRODUCT OVERVIEW
Superior Dynamic Performance and Processing Quality
The new GX-M features ultra-high performance dynamic combination, with higher processing efficiency, while ensuring consistent processing accuracy under long-term high-speed dynamic performance.
TYPICAL PROCESSING
Cost-Effective with Fast ROI

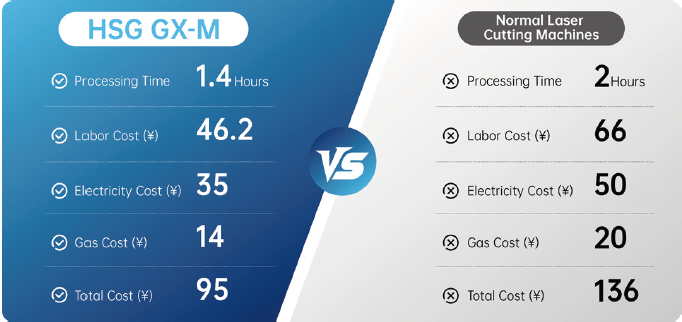

Taking the processing of ten 1mm stainless steel sheets with complex shapes as an example, it saves labor, electricity, gas, and processing time, reduces costs, increases efficiency across multiple dimensions, and lowers total usage costs by 30%.
CUT FASTER
Cutting Speed Increased by 30%
Relying on the advantages of the bus system, it accurately emits light in advance during the air movement process, realizes fast perforation at high places, saves perforation time, and synchronously improves cutting efficiency and order acceptance efficiency.
CUT POWERFULLY
Complex Workpiece Cutting Fast, Accurate and Stable
The machine, equipped with one stroke-flying cutting function, by optimizing the empty path, effectively avoids cutting the previously cut areas in subsequent cutting paths, improves cutting speed, and increases efficiency by 17%.
STABLE CUTTING
Lightweight Design for Dynamic Performance Improvement
The fifth-generation 6-series extruded aluminum beams have a weight reduction of 28% compared to the previous generation, and a 15% increase in torsional performance, fully utilizing the high dynamic performance of the equipment and improving processing efficiency.
EXTENT THE LIFESPAN
High Rigidity and Durable Structure
The fully welded bed body has a rigidity increase of 25% compared to the previous generation, a bending and torsion resistance increase of 31%, and is durable without deformation.
TECHNICAL PARAMETERS
| Model | G3015X-M | G4020X-M |
| Laser Power | 3-12kW | 3-12kW |
| Cutting Area(Length*Width) | 3048x1524mn | 4064x2040mm |
| Maximum Acceleration | 1.5G | 1.5G |
| Low-pass Filtering | 7Hz | 7Hz |
| Max. Linkage Speed | 150m/min | 150m/min |
