Laser Power
1.5-12kW
Max. Linkage Acceleration
1.5G
Max. Linkage Speed
120m/min
PRODUCT OVERVIEW
Compact Design, Small Footprint
The design concept of the X series cutting machine is to minimize equipment size while ensuring processing capability, reducing equipment footprint, and saving space for customers.
TYPICAL PROCESSING
High Processing Efficiency, Strong Processing Capability

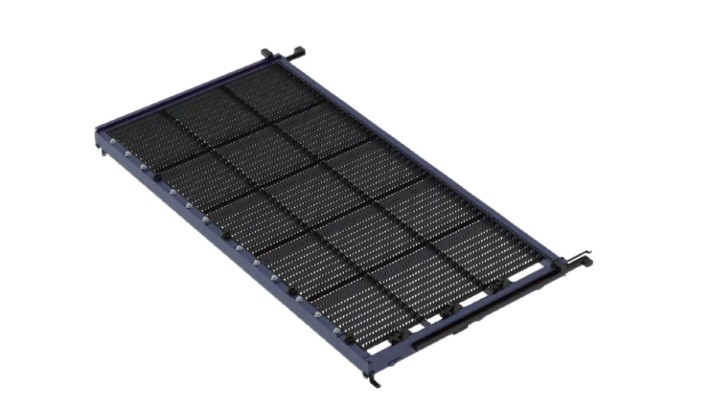

The overall machine acceleration reaches 1.5G, greatly improving processing efficiency. The cutting worktable can bear a sheet weight of up to1,000kg, meeting the highest thickness of 30mm for whole sheet processing, resulting in higher processing capability.
IMPROVE PROCCSING QUALITY
Secondary Processing Positioning System
The workbench is equipped with mechanical positioning blocks and cylinder clamping to ensure the stability of secondary processing positioning.
RELIABLE & DURABLE
High Stability and Long-lasting Durability

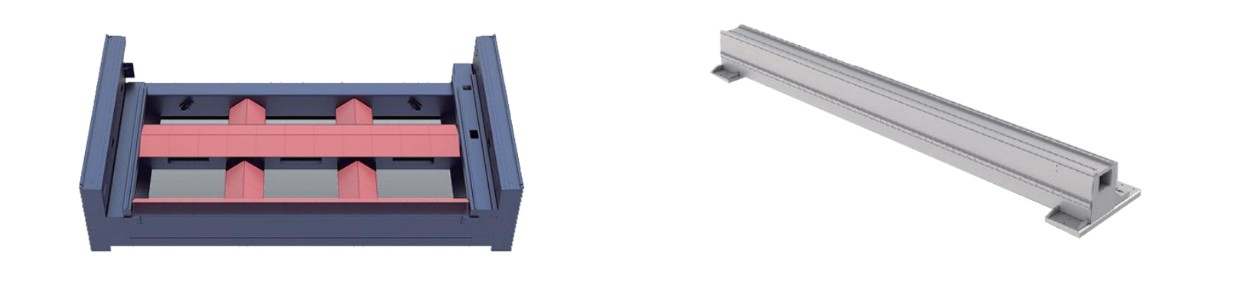

The bed is covered with manganese steel anti-burn sheet, effectively blocking laser heat and avoiding thermal deformation. The fifth-generation extruded aluminum beam significantly improves torsional resistance, ensuring stable operation and durability of the equipment.
EASY TO USE

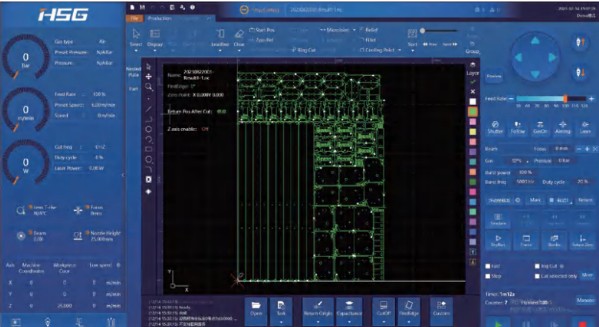

Bus Control System with Richer System Functionality
Utilizing HSG’s self-developed AlphaT 2.0/Plus bus system, integrating a wealth of sheet metal processing techniques: lightning piercing, disk centering, slag removal after piercing, seamless micro-welding, perfect tool retraction, etc., making sheet metal cutting simpler.
CARE YOUR SAFETY
Full protective structure, compliant With TUVCE Certification standards(Optional)
The equipment adopts a fully enclosed structure with OD glass to
prevent laser radiation; grilles, fences, and monitoring further
prevent machine operation from causing harm to humans.
TECHNICAL PARAMETERS
| Model | X3015 |
| Laser Power | 1.5-12kW |
| Cutting Area(Length*Width) | 3048×1524mm (1.5-6kW) / 3000mm×1500mm (12kW) |
| Maximum Acceleration | 1.5G |
| Max. Linkage Speed | 120m/min |
| Operating System | AlphaT 2.0(1.5-6kW) / AlphaT Plus(12kW) |
