Cutting Head
3D
Laser Power
6-20kW
Max Diameter
510mm
Max Single Tube Weight
2,000kg
PRODUCT OVERVIEW
Designed for large-diameter tubes and profiles
HSG TX5 designed to process tubes up to 510mm in diameter and weighing up to 2,000 kg , the TX5 excels in applications requiring robust cutting capabilities, such as construction, aerospace, energy, and transportation. Its advanced automation features and cutting-edge technology ensure seamless integration into modern production lines.
TYPICAL PROCESSING
Unmatched Capability Versatile Profile
Engineered for versatility, TX5 Series supports cutting round, square, and complex profiles such as channel steel, angle iron, and I-beams, meeting diverse production demands with ease. It handles tubes weighing up to 2,000 kg, accommodates round tube diameters ranging from 50mm to 510mm, and processes lengths up to 12,500mm—all in a single, powerful solution built to streamline operations and enhance efficiency.
SAVE YOUR COST

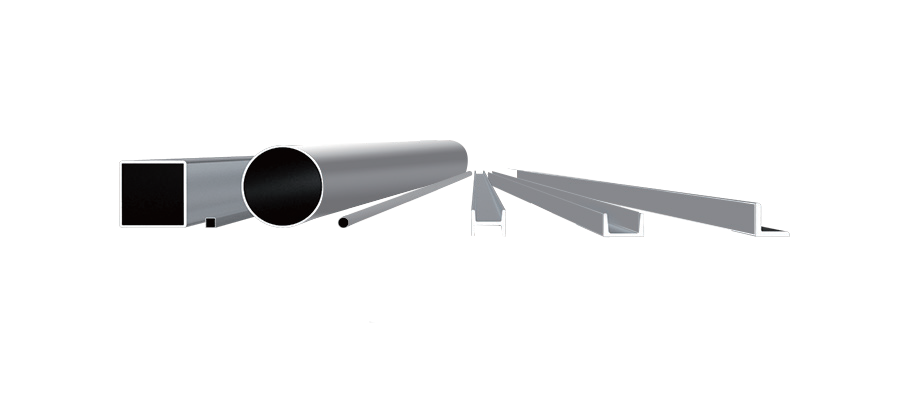

Easily Process Tubes and Open Profiles
Engineered for versatility, TX5 supports cutting round, square,
and complex profiles such as channel steel, angle iron, and
I-beams,etc. Meeting diverse production demands with ease.
SAVE YOUR MATERIAL

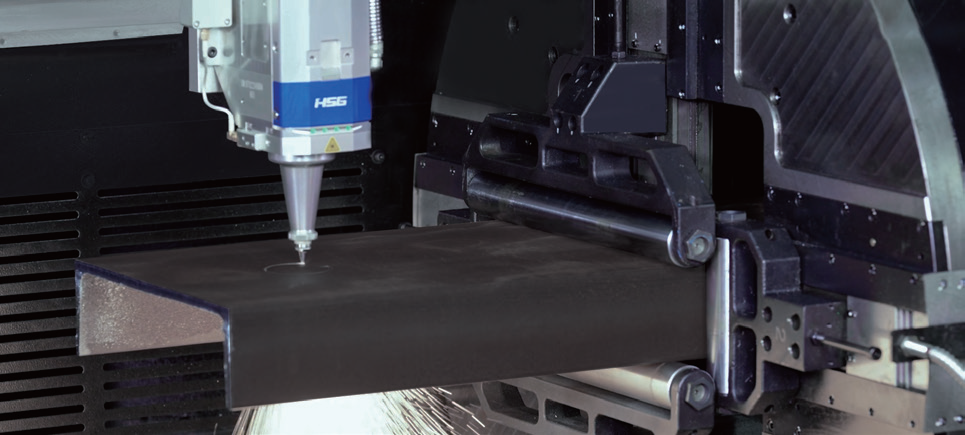

HSG Zero Tailing Technology
HSG’s advanced multi-chuck reversig technology eliminates tailing during heavy tube cutting, optimizing material utilization, minimizing waste, and delivering significant cost savings.
SAVE YOUR COST

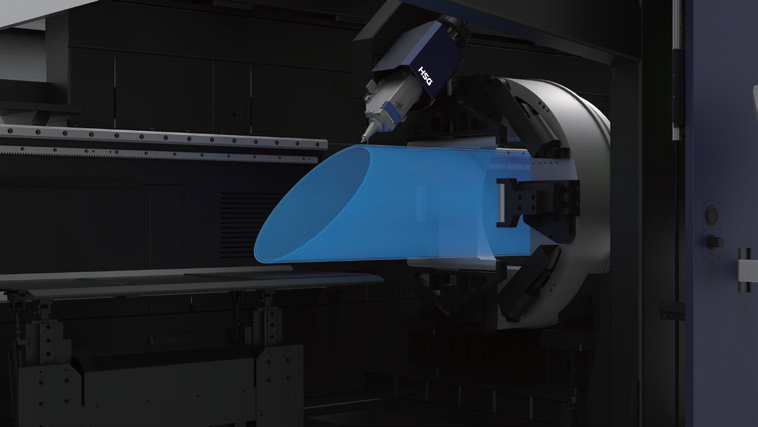

0-45° Bevel Cutting
TX5 offers flexible cutting within a ±45° bevel range, enabling precise joint preparation. This reduces the need for additional processing steps, saving both time and labor.
CARE YOUR SAFETY

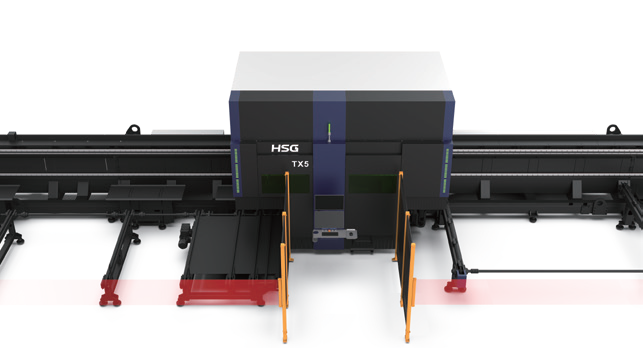

Safety Protection Package
Equipped with a top cover for enclosed processing to reduce smoke and maintain a clean working environment.The safety light curtain will prevent any possible collision with human body and protect both workers and the machine well.
SAVE YOUR TIME

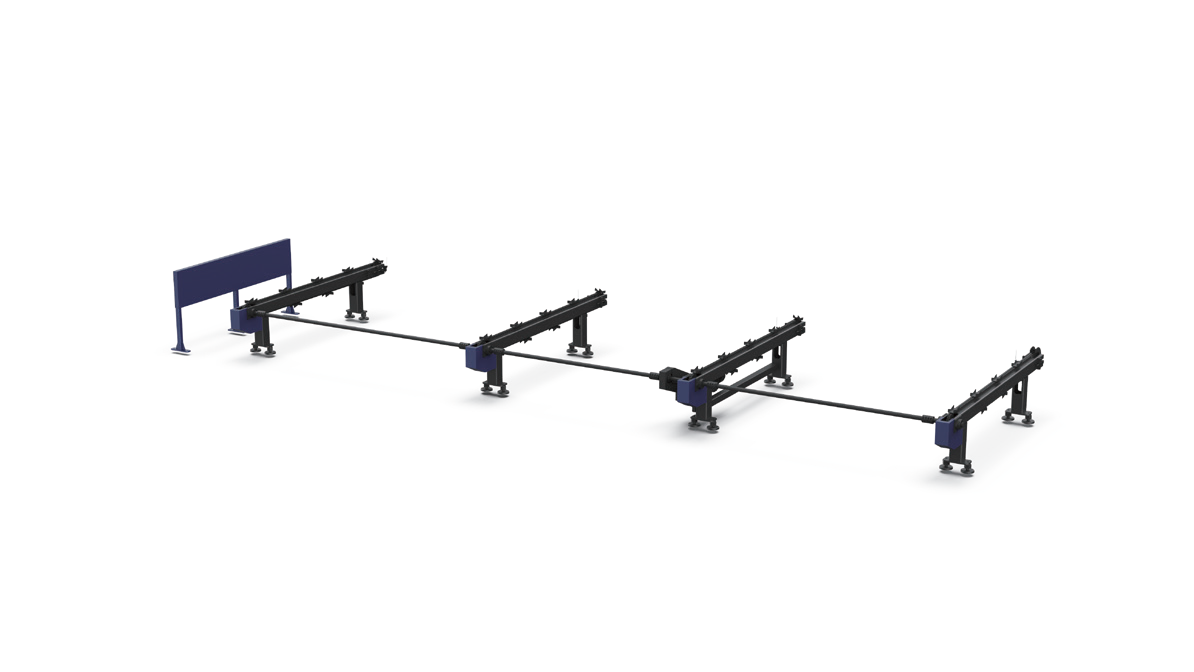

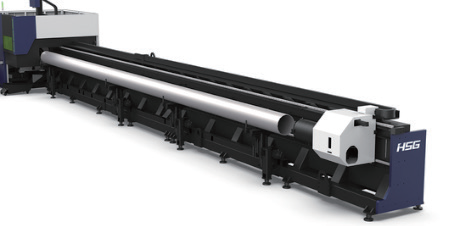

Versatile Automatic Loading
TX5 provides reliable support for tube unloading, offering high compatibility with various tube sizes, specifications, and types .
TECHNICAL PARAMETERS
| Model | TX5 |
| Laser Power | 6-20kW |
| Cutting Capacity of Round Tube/Square Tube | 50-510 mm / 50×50 – 500×500 mm |
| Weight of Single Tube | 2,000 kg |
| Chuck Speed | 40 rpm |
| Max Linkage Speed | 60m/min |
| Maximum Acceleration | 0.3G |
| Beveling Cutting | Optional |
| Control System | HSG – X10000 Bus System |
