Cutting Head
3D
Laser Power
6-20kW
Max Diameter
350mm
Max Single Tube Weight
1,200kg
PRODUCT OVERVIEW
Designed for Heavy-duty Tubes and Profiles

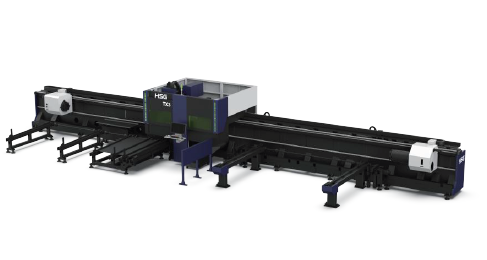

HSG TX3 designed to process tubes up to 350mm in diameter and weighing up to 1,200 kg , the TX3 excels in applications requiring robust cutting capabilities, such as construction, aerospace, energy, and transportation. Its advanced automation features and cutting-edge technology ensure seamless integration into modern production lines.
TYPICAL PROCESSING
High Processing Efficiency, Strong Processing Capability

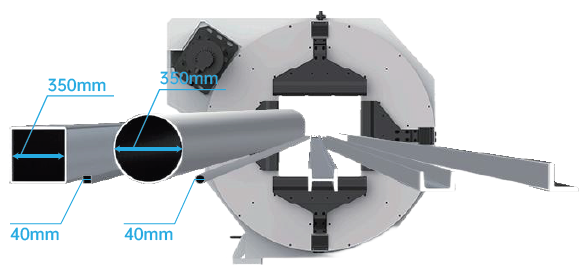

With the HSG unique intelligent chucks, tubes can be manufactured across the entire clamping range from 40-350mm without the need for retooling. The chuck has good sealing, avoids cutting smoke and slagpollution, and ensures the stability of the equipment and the long service life.
SAVE YOUR COST
Easily Process Tubes and Open Profiles
Engineered for versatility, TX3 supports cutting round, square, and complex profiles such as channel steel, angle iron, and I-beams, etc. Meeting diverse production demands with ease.
SAVE YOUR COST

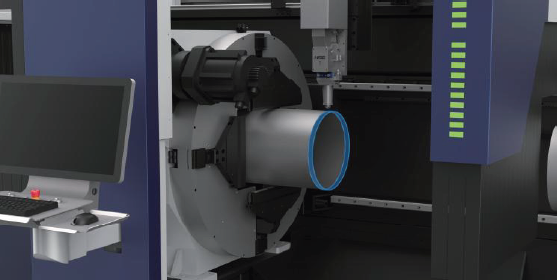

HSG Zero Tailing Technology
HSG’s advanced multi-chuck reversig technology eliminates tailing during heavy tube cutting, optimizing material utilization, minimizing waste, and delivering significant cost savings
IMPROVE PROCESSING QUALITY
Full-length Loading and Unloading of 12m Tubes

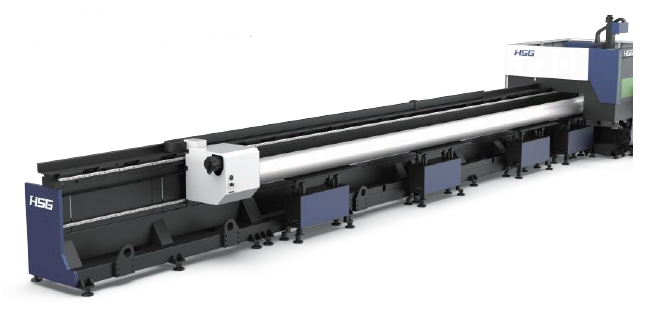

TX3 equipped with servo follow-up support during cutting process and follow-up supporting plate as unloading device, which stably supports complete loading and unloading of 12m-long tubes. It enhances processing quality, operational safety, and lowers production costs.
SAVE YOUR COST

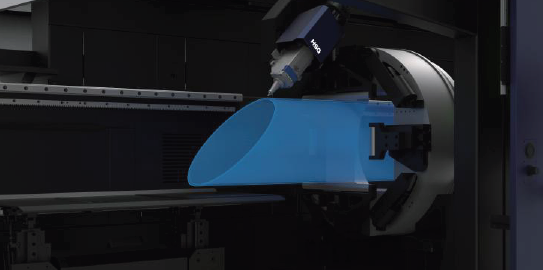

0-45° Bevel Cutting
TX3 offers flexible cutting within a ±45° bevel range, enabling precise joint preparation. This reduces the need for additional processing steps, saving both time and labor.
SAVE YOUR TIME
Streamline Your Workflow with Automation

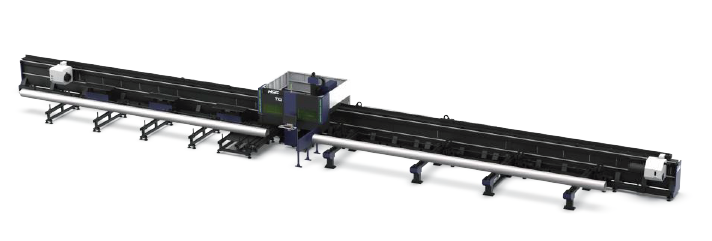

Automatic loading and unloading of heavy tubes, efficient and time-saving, shorten production preparation time. Greatly improves operational safety, saves labor and reduces costs.
TECHNICAL PARAMETERS
| Model | TX3 |
| Laser Power | 6-20KW |
| Cutting Capacity of Round Tube / Square Tube | 40mm-350mm/40×40 350x350mm |
| Weight of Single Tube | 1,200kg |
| Chuck Speed | 60 rpm |
| Max. Linkage Speed | 80m/min |
| Maxximum Acceleration | 0.8G |
| Beveling Cutting | Optional |
