Round Tube Cutting Range
12-273mm/ 0.47''-10.75''
Max Tube Weight
300kg/ 661lbs
Max. Acceleration
1.4G
Max. Linkage Speed
140m/min 459'/min

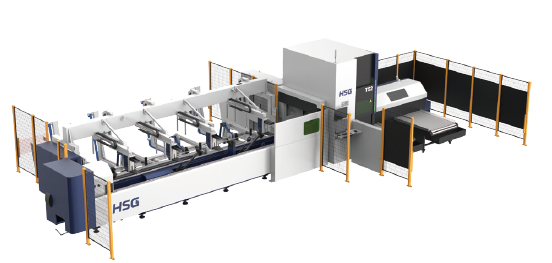

PRODUCT OVERVIEW
A Premium Lasertube System for Unmatched ROI
As fabricators face increasing demands for higher throughput, lower
labor costs, and superior cut quality, the TS2 streamlines every stage
of tube fabrication—from automated material handling to advanced
cutting intelligence—ensuring a more efficient, cost-effective, and
future-ready operation.

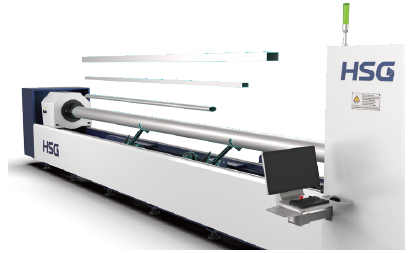

TYPICAL PROCESSING
Multiple Tube Processing Capabilities
Its advanced digital intelligent dual chuck and independent servo
follow-up support, engineered for versatility, the TS2 series standard
configuration includes two clamps for tubes and profiles, capable of
processing tubes with a weight of 300kg(661lbs). It supports cutting
profiles such as channel steel, angle steel, and H-beams.

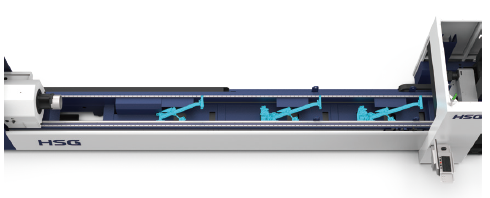

IMPROVE PROCESSING QUALITY
Dynamic Support+
The machine is equipped with highly sensitive and independent
servo follow-up support to ensure stable tube cutting and
enhance cutting precision.
SAVE YOUR COST
3D Cutting Technology（Optional）
HSG 3D Cutting Technology expands production capabilities, enabling
high-precision bevel cutting and complex tube processing, reducing
manual finishing and enhancing overall manufacturing efficiency.

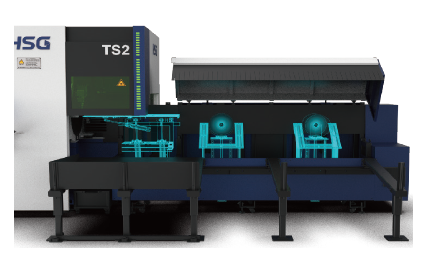

IMPROVING ACCURACY
Dynamic Unloading +
The unloading positions are equipped with one follow-up flip
plate and two follow-up concave wheels that can move forward
and backward and rise and fall. The position can be intelligently
adjusted according to the length of the workpiece, providing
stable support during cutting and unloading processes.

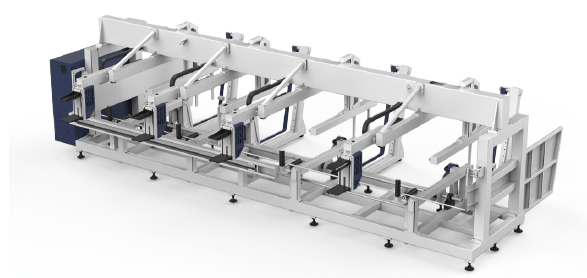

SAVE YOUR TIME
25S Rapid Loading（Optional）
The bundle loader supports automatic loading of tubes with a length
of 3600-6500mm(11.81′-21.33′) and a weight 300kg (661 lbs). The
loading time can be as short as 25 seconds, improving processing
efficiency.

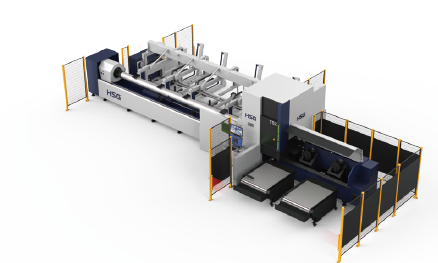

CARE YOUR SAFETY
Safety Protection Package（Optional）
> Equipped with a top cover for enclosed processing to reduce
smoke and maintain a clean working environment.
> The safety light curtain will prevent any possible collision with
human body and protect both workers and the machine well.
TECHNICAL PARAMETERS
| Model | TS2 | TS2-90 |
| Power | 3-6kW | 3-6kW |
| Cutting Capacity of Round Tube | φ12-273mm / φ 0.47” – 10.75” | φ12-273mm / φ 0.47” – 10.75” |
| Cutting Capacity of Square Tube | 12×12-220×220mm / 0.47” × 0.47”– 8.66”×8.66” | 12×12-220×220mm / 0.47” × 0.47”– 8.66”×8.66” |
| The Range of Tube Length | 1m-6.5m / 3.28′-21.33′ | 1m-9.2m / 3.28′-30.18′ |
| Unloading Length | 3m or 4.5m / 9.84′ or 14.76′ | 4.5m or 6.5m / 14.76′ or 21.33′ |
| Acceleration | 1.4G | 1.4G |
| Max. Loading Capacity(Single) | 300kg / 661lbs | 300kg / 661lbs |
