Cutting Head
3D
Laser Power
6-20kW
Max Diameter
715mm
Max Single Tube Weight
4,000kg

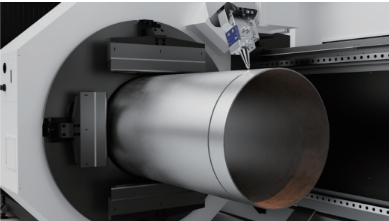

PRODUCT OVERVIEW
Built for Ultra-Large and Heavy-duty Tube
Experience the TL730S—an industry benchmark in quality, productivity,
and performance. Engineered to handle ultra-large tube cutting
applications, it offers up to 20kW of laser power, accommodates tube
lengths up to 16m, weights up to 4,000kg, and diameters up to 715mm.
The TL730S is the ultimate solution for industries requiring precision and
efficiency, including steel fabrication, petroleum, and shipbuilding sectors.
TYPICAL PROCESSING
±45° Bevel Cutting for Complex Tasks
Experience unmatched precision and versatility with the HSG LA4 high-
performance 5-axis bevel laser cutting head, expertly designed for high-
power laser tube cutting machines, enables flexible cutting within a ±45° bevel range, making it ideal for tackling complex geometries with
ease while streamlining subsequent processes.
IMPROVE PROCESSING ACCURACY

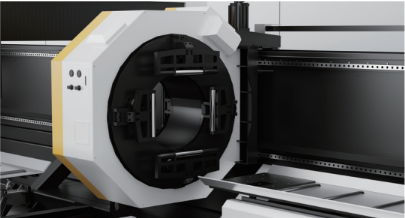

Innovate 4+1 Chucks Structure
C3 chuck and C4 chuck are combined to achieve double support; There are 4 points clamping at loading section and the load bearing improved significantly. Clamping near the cutting area at 2 points which the accuracy is effectively guaranteed.
SAVE YOUR COST
Maximize Material Saving
Powered by HSG’s exclusive intelligent dual-chuck technology,the C4 chuck handles support and clamping, while the C3 chuck manages feeding and cutting. With optimized process planning, this setup enables zero material waste, helping you save materials and further enhance productivity.
DURABLE & RELIABLE
Engineered for Strength, Built for Reliability

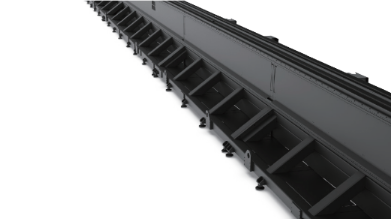

TL730S is meticulously engineered from the ground up for extra-large and heavy tubes. Its robust L-shaped, heavy-duty design ensures unmatched strength and reliability.
SAVE YOUR TIME

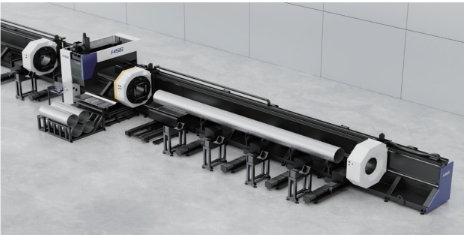

Effortless Loading and Unloading(Optional)
Streamline operations with smooth and efficient automatic loading and unloading. The TL730S supports diverse materials, prevents damage from manual handling, and offers flexible unloading options. A chain loader handles profiles up to 16m, accommodating various sections and lengths with ease.
CARE YOUR SAFETY

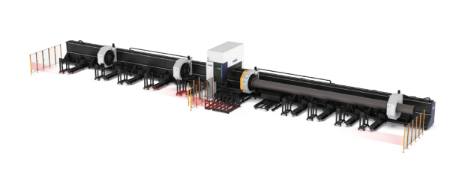

Safety Protection Package(Optional)
- Equipped with a top cover for enclosed processing to reduce smoke and maintain a clean working environment.
- The safety light curtain will prevent any possible collision with human body and protect both workers and the machine well.
TECHNICAL PARAMETERS
| Model | TL730S |
| Laser Power | 6-20KW |
| Cutting Capacity of Round Tube / Square Tube | Φ120mm-715mm / □120×120-□500×500mm |
| Weight of Single Tube | 4,000kg |
| Max. Linkage Speed | 45m/min |
