Laser Power
12-30kW
Max. Linkage Acceleration
0.5G
Max. Linkage Speed
80m/min

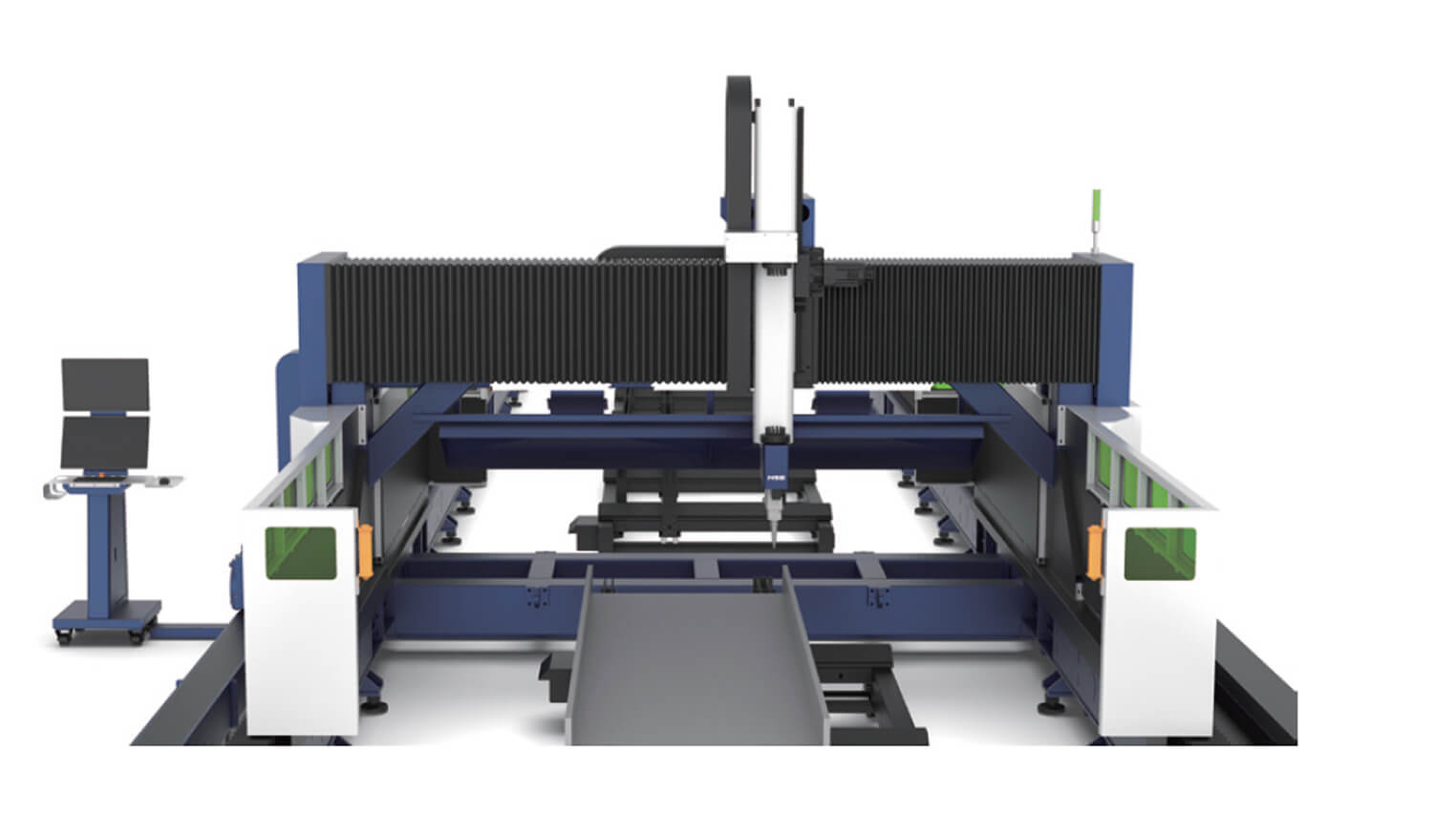

PRODUCT OVERVIEW
Three-in-one Processing of Profiles, Sheets, and Bevel Cutting.

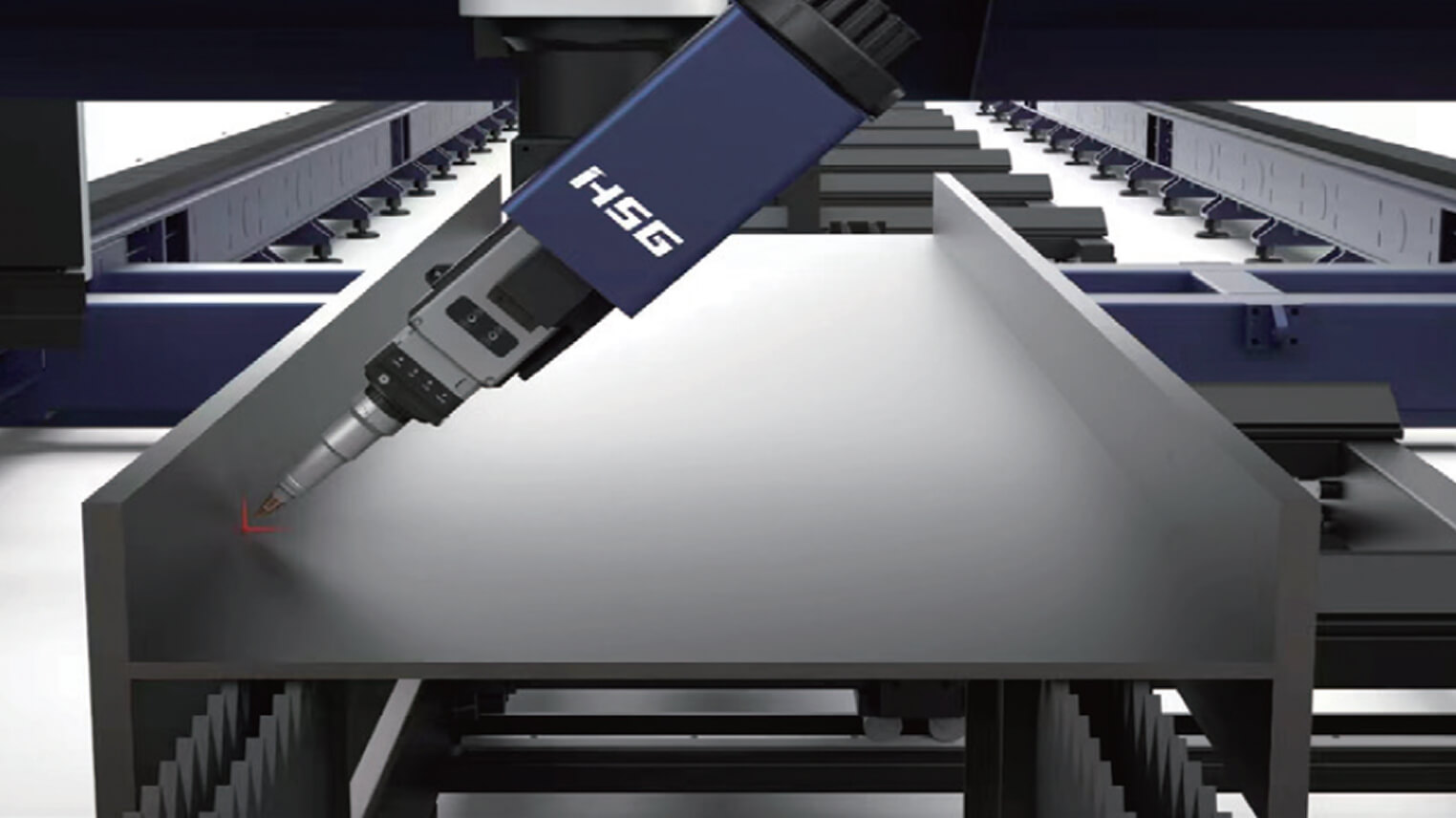

PR1500B laser cutting machine combines sheets, profile, and bevel cutting
to meet the processing needs of the steel structure industry. In addition to
straight cutting, it can also achieve bevel cutting for subsequent welding
operations, saving you investment costs.

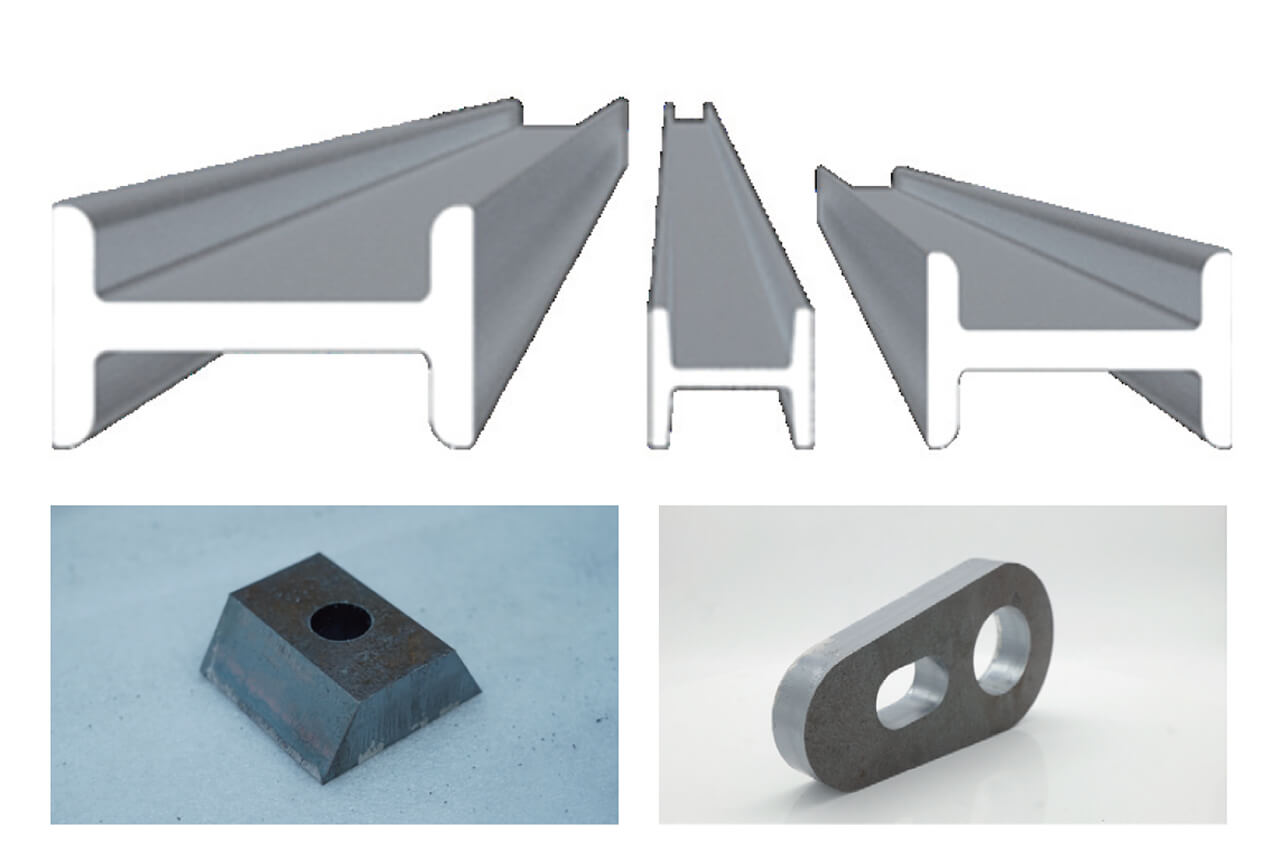

TYPICAL PROCESSING
Flexible Processing Solutions for Large-Scale Materials
The processing width is 3 m, and the length of a single workstation
is 14 m, which can be expanded to 28 m for dual workstation
processing. It can process various sizes of steel sections, solving the
pain point of high difficulty in cutting large-sized workpieces.
CUT EASIER
One-Stop Specialized Solutions For Section Steel Cutting
Real-time measurement and compensation of section steel workpieces and drawings will be done through coarse positioning + fine positioning. The nesting software for the PR1500B series has strong compatibility with Tekla, users can enjoy intelligent control system through simple operations.
SAVE YOUR TIME
High-efficient Cutting Processing
High nesting utilization ratio as famous nesting software. Simple operation with drawing function and support manual and automatic nesting. Support different materials and thicknesses categorized typesetting. Excel batch import.
CUT MORE STABLE
Real time Compensation for Size Dimensions of Section Steel
Real time measurement and compensation of structural steel workpieces and drawings through coarse positioning and fine positioning. At the same time, it can avoid falling collisions and cutting head collisions, ensuring cutting quality and equipment safety.
CARE YOUR SAFETY
Multiple Safety Protection
There are protective sheet metal on both sides of the beam, effectively blocking the splashing of cutting sparks. Equipped with anti-burning sheet. PR1500B Series can offer heat protection without heat damage worry. The safety protection glass on both sides allows for real-time observation of cutting conditions while providing protection.
TECHNICAL PARAMETERS
| Model | PR1500B |
| Laser Power | 12-30kW |
| Machining Area (Length×Width) （Vertical cutting） | 13000×3500mm (Dual Workstation) |
| Machining Area (Length×Width) （Bevel Cutting） | 12000×3000mm (Dual Workstation) |
| Max. Linkage Speed | 80m/min |
| Maximum Acceleration | 0.5G |
| Maximum Length of Profiles | 12500mm (Dual Workstation) |
