Laser Power
1.5-60kW
Max. Linkage Acceleration
1.5G
Max. Linkage Speed
120m/min

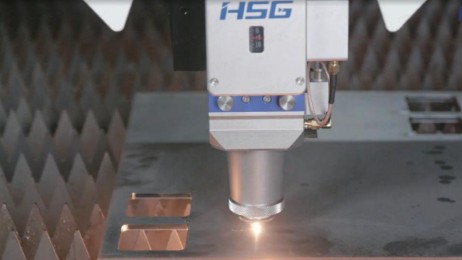

PRODUCT OVERVIEW
High Quality With Low Investment And Operation Costs
The C series is the flexible and economic choice for 2D laser cutting.
It is suitable for most sheet metal processing needs, achieving economic
benefits with lower investment. And you can count on our experienced
and competent service team to answer your questions regarding
maintenance and applications.
TYPICAL PROCESSING
Tiny But Useful

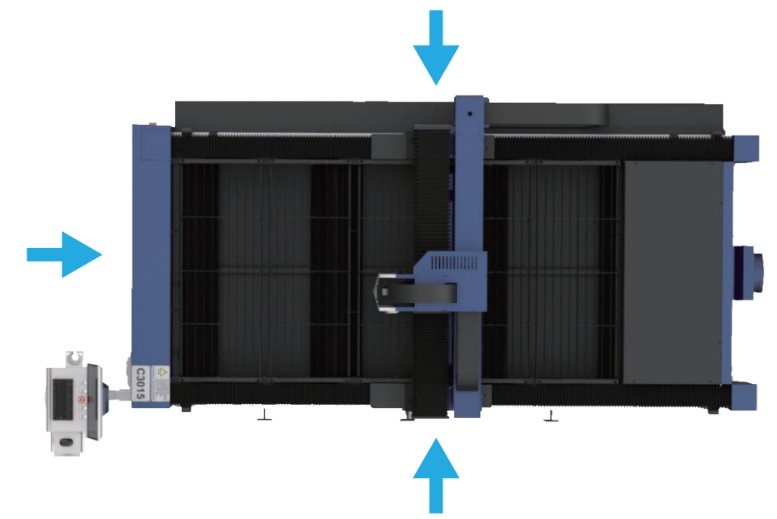

Single platform with open structure which can load materials from
three directions to achieve tiny machine size.
SAVE YOUR COST
Small Size, Bulk Transport
Open-type structure with a single platform, loading from the front,
left and right sides, only takes one day to get started.
Ship four C3015 in one 40HQ standard container, as a result, it can
save overseas freight and fit for customers who prefer to bulk orders.
SAVE YOUR COST

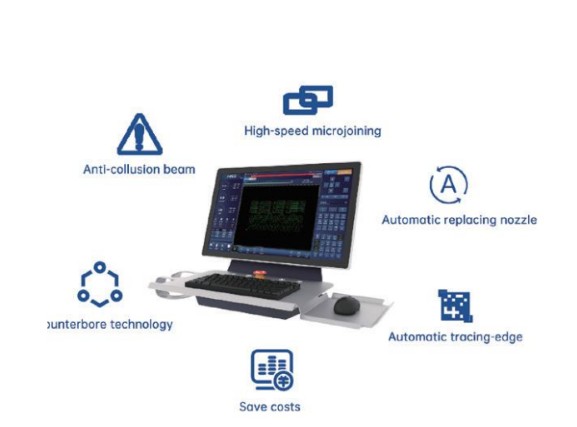

Fully Functional Processing Technology
High-speed micro joining, nano micro joining, counterbore technology and non-inductive perforation.
Manual, automatic tracing-edge and anti-collusion beam.
Leftover bits and pieces cutting, coaxial visual sensing and automatic replacing nozzle. Common side cutting to reduce leftover bits and pieces and save energy.
EASY TO USE

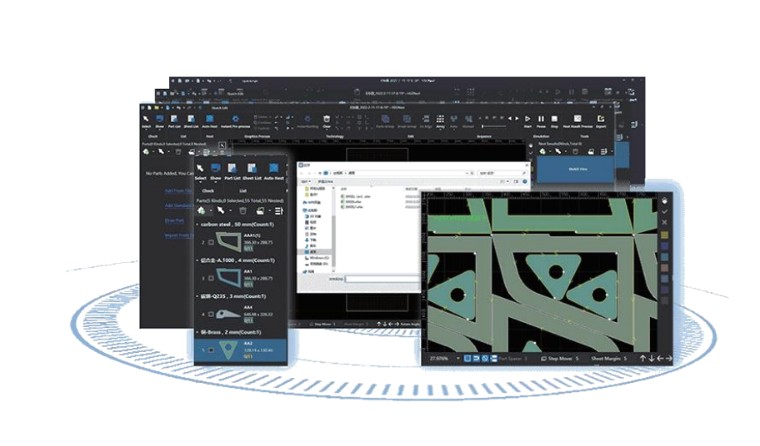

Professional Nesting Software with Standard Configuration
High nesting utilization ratio as famous nesting software.
Simple operation with drawing function and support manual and
automatic nesting.Support different materials and thicknesses
categorized typesetting. Excel batch import.
EASY TO USE
Bus Control System
It enables data transmission via EtherCAT bus and features fast speed and stability. This system is easy to be operated and rich in functions. Even green hands can cut high-quality samples.
TECHNICAL PARAMETERS
| Model | C3015 | C4020 | C6015 | C6025 | C12025 | C13030 |
| Laser Power | 1.5-6kW | 1.5-6kW | 3-12kW | 3-20kW | 12-60kW | 12-60kW |
| Cutting Area(Length*Width) | 3048×1524mm | 4064×2032mm | 6096×1524mm | 6096×2540mm | 12500×2540mm | 13100×3100mm |
| Maximum Acceleration | 1.5G | 1.5G | 1.5G | 1.5G | 1.5G | 1.5G |
| X/Y Axis Postioning Accuracy | ±0.05mm/m | ±0.05mm/m | ±0.05mm/m | ±0.05mm/m | ±0.05mm/m | ±0.05mm/m |
| X/Y Axis Re-postioning Accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
| Max. Linkage Speed | 120m/min | 120m/min | 120m/min | 120m/min | 120m/min | 120m/min |
